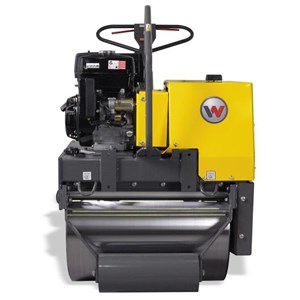

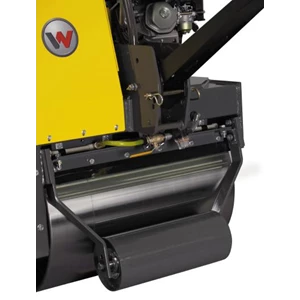

Vibratory Roller Wacker Neuson RS 800A
Description
Metric
Operating weight
440
kg
Drum diameter
560
mm
Drum width
720
mm
Length x width x height (standard)
2,135 x 840 x 1,270
mm
Curb clearance
410
mm
Shipping weight (including packaging)
465
kg
Shipping size
1,145 x 965 x 2,160
mm
Water tank capacity
30
l
Engine Type
Engine Type
Starting system
Recoil
Displacement
337
cm3
Max. Rated Power at Rated Speed*
7.1 kW at 3600 rpm
Power Rating Specification
Operating speed
2,400
1/min
Fuel consumption
3.5
l/h
Fuel tank capacity
7
l
Total centrifugal force
15.2
kN
Frequency
70
Hz
Dynamic linear force per drum (f/r)
21
N/mm
Transmission
Hydrostatic
Variable speeds - Forward
0 - 61
m/min
Variable speeds - Reverse
0 - 2.7
km/h
Variable speeds - Reverse
0 - 46
m/min
Compacted area
up to 2,630
m2/h
Max. gradeability (depending on soil)
15
%
Variable speeds - Forward
0 - 3.7
km/h
